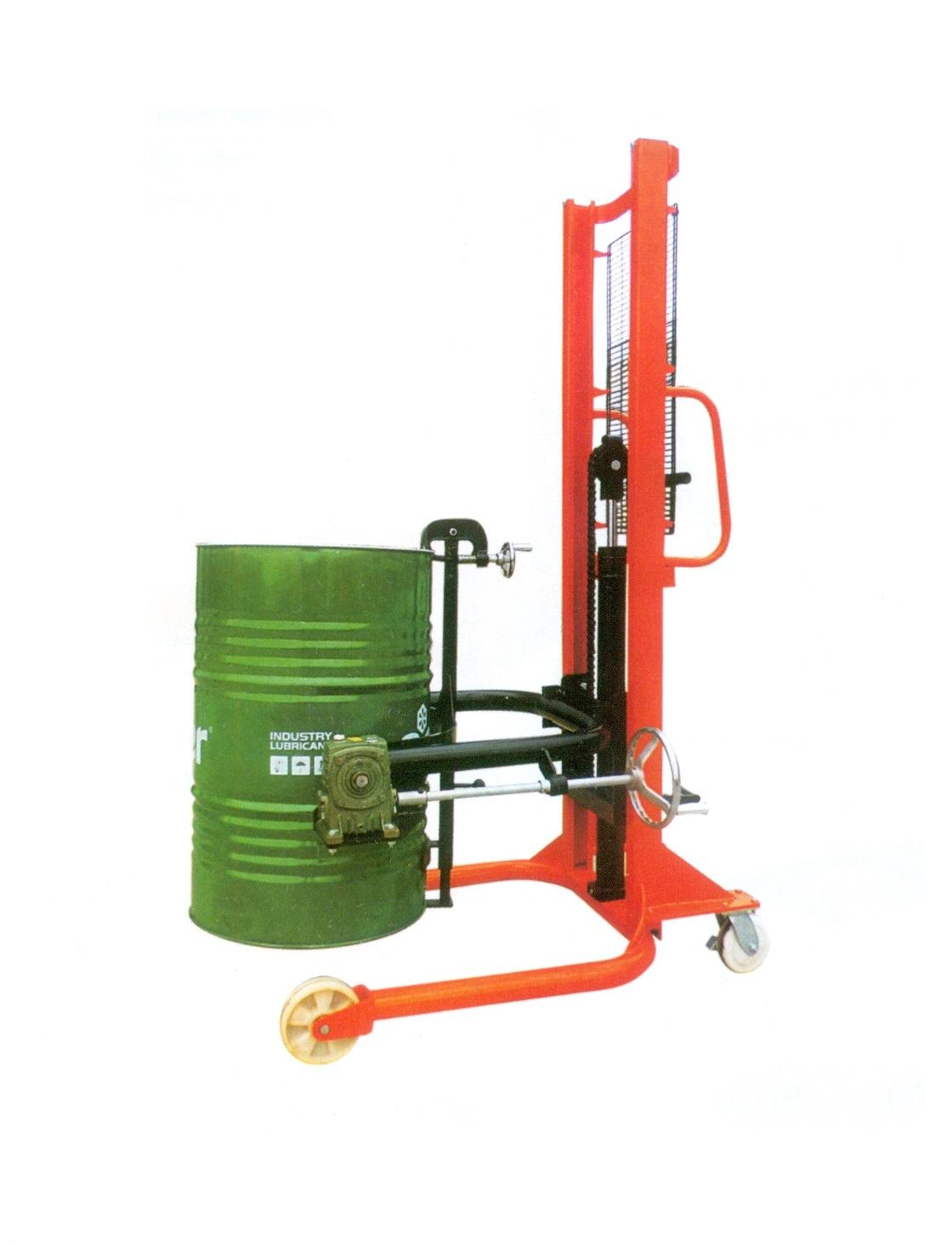

Manual Drum Lifter Capacity- 350kg - Lift Height- 1600mm
A manual drum lifter is hand-operated equipment built to safely lift, tilt, and transport steel or plastic drums without manual handling strain. A hydraulic hand-pump mechanism raises the drum cradle, keeping the load secure and controlled through the full lift.
This 350kg capacity, 1600mm lift-height configuration of the Manual Drum Lifter is suited to small parts, drums, and light components where precise, controlled lifting matters more than raw throughput, at a lift range built for mid-level racking and standard warehouse aisle heights, the most common configuration in Indian warehouses. The combination of load capacity and lift height is matched to keep the unit stable through its full range of motion, rather than over-specifying one dimension at the cost of the other.
Reliable Storage Systems manufactures the Manual Drum Lifter range in-house at our Mumbai facility under ISO 9001:2015 and ISO 14001:2015 certified processes, and we can adjust capacity, lift height, and fork/frame dimensions to match your specific application before dispatch. Every unit ships with the technical specification sheet shown below, and our team is available for on-site demonstration and after-sales support across Mumbai, Pune, Bengaluru, Chennai, and Pan-India.
Technical Specification
| Model | RCOTO.35/1.4 |
|---|---|
| Load Lifting Capacity | 350 kg |
| Lifting Height | 1600 mm |
| Overall Dimension | 1190 x 890 x 2000 mm |
| Self Weight | 160 kg |
| Overall Height | 2020 mm |
| Net Weight | 155 kg |
Enhanced Safety: Eliminates manual lifting, reducing the risk of musculoskeletal injuries.
Increased Efficiency: Improves productivity by streamlining drum handling processes.
Damage Prevention: Protects drums from damage caused by improper handling.
Versatility: Suitable for handling different drum sizes and weights.
Ergonomic Design: Reduces operator fatigue and discomfort.
Hydraulic power for smooth and controlled lifting and tilting.
Adjustable forks to accommodate various drum sizes.
Sturdy construction for durability and stability.
Safety features like overload protection and emergency stop.
Compact design for easy manoeuvrability.
This lift height covers low-level shelving and single-tier storage, making it a fit for small warehouses, retail stockrooms, and light workshop use where headroom is limited.
Chemical Industry: Lifting and positioning drums of corrosive or hazardous liquids safely.
Food & Beverage: Moving drums of ingredients or finished product between production and storage.
Pharmaceutical: Handling sealed drums of raw material under controlled conditions.
Oil & Lubricants: Transporting and decanting drums at the working height above.
The Hydraulic Drum Lifter & Tilter is an indispensable tool for any operation involving the handling of drums. It significantly enhances safety, efficiency, and productivity while minimizing physical strain on workers.
By investing in a Hydraulic Drum Lifter & Tilter, businesses can optimize their drum handling processes, create a safer work environment, and improve overall operational efficiency.
