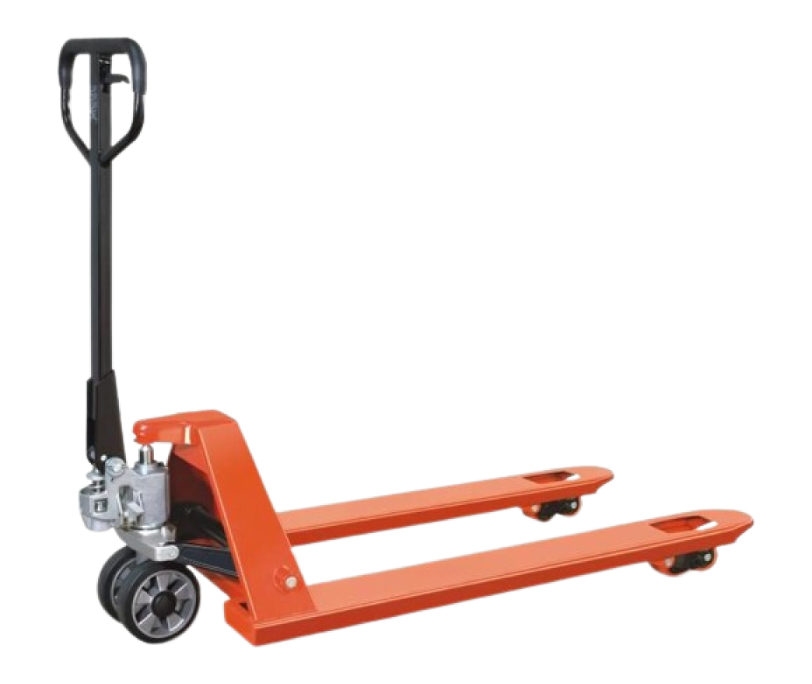

Hand Pallet Truck- 2.0 Tons

Technical Specification

Model	RCBY-AC-1 2.0
Capacity	2000kg
Min Fork height	75/85mm
Max Fork height	185/195mm
Lifting height	110mm
Fork length	1150/1220mm
Single Fork width	160mm
Width Overall Forks	550/685mm
Fork Wheel Singl	80x93/74x93mm
Fork Wheel Tandem	74x70/80x70 mm
Steering Wheel	180x50 mm

Hand Pallet Truck- 2.5 Tons

Technical Specification

Model	RCBY-AC-1 2.5
Capacity	2500kg
Min Fork height	75/85mm
Max Fork height	185/195mm
Lifting height	110mm
Fork length	1150/1220mm
Single Fork width	160mm
Width Overall Forks	550/685mm
Fork Wheel Singl	80x93/74x93mm
Fork Wheel Tandem	74x70/80x70mm
Steering Wheel	180x50mm

Hand Pallet Truck- 3.0 Tons

Technical Specification

Model	RCBY-AC-1 3.0
Capacity	3000kg
Min Fork height	75/85mm
Max Fork height	185/195mm
Lifting height	110mm
Fork length	1150/1220mm
Single Fork width	160mm
Width Overall Forks	550/685mm
Fork Wheel Singl	80x96/74x93
Fork Wheel Tandem	74x70/80x70mm
Steering Wheel	180x50mm

Hand Pallet Truck- 5.0 Tons

Technical Specification

Model	RCBY - 5.0 T
Capacity	5000kg
Min Fork height	85mm
Max Fork height	195mm
Fork length	1150/1220mm
Width Overall Forks	550/685mm
Fork Wheel	80x70mm
Truck weight	120/130kg
Steering Wheel	180x52mm

Stainless Steel Pallet Truck- 2.5 Tons

Technical Specification

Model	RCBY BX2.5
Capacity	2500kg
Min Fork height	85mm
Max Fork height	195mm
Fork length	1150/1220mm
Single Fork width	160mm
Total Overall Forks	550/685mm

Hand Pallet Track With Scale

Scale Pallet Truck: Weighing Made Easy for Warehouse Efficiency

A scale pallet truck, also known as a weighing scale pallet truck, combines the functionality of a traditional pallet truck with a built-in weighing scale. This innovative equipment streamlines warehouse operations by allowing you to lift, transport, and weigh pallets in a single step, saving time and effort.

Benefits and Advantages:

Increased Efficiency: Eliminate the need for separate lifting, transporting, and weighing processes, boosting productivity.
Improved Inventory Management: Gain real-time weight data for accurate inventory control and tracking.

Scissor Pallet Truck

Scissor Pallet Truck: The Versatile Lifting Solution

A scissor pallet truck, also known as a high lift pallet truck or a lifting pallet jack, is a manual material handling equipment designed to lift and transport palletized goods. Unlike a standard pallet jack, which only raises the forks to a fixed height, a scissor pallet truck utilizes a scissor mechanism to elevate pallets to various heights. This allows for efficient loading and unloading of pallets onto trucks, containers, and storage racks at different levels.

Benefits and Advantages:

Increased Efficiency: Scissor pallet trucks eliminate the need for manual lifting, reducing strain on workers and improving productivity.
Versatility: They can handle a wider range of tasks compared to standard pallet jacks due to their adjustable lifting heights.
